Java, Spring Boot & AWS | Publisher-Subscriber Pattern Using SNS & SQS
Implementing Pub/Sub with AWS SNS and SQS in Spring Boot: A Java Developer’s Guide
As a Java developer who’s built systems like Mosaic Smart Data’s real-time API pipeline, Co-op’s pricing analytics, ESG Global’s smart metering orchestration, and Ribby Hall Village’s data warehouse, I’ve leaned on event-driven architectures to create scalable, decoupled microservices. The publisher-subscriber (pub/sub) pattern, enabled by AWS SNS and SQS, has been a go-to for asynchronous communication, ensuring systems evolve independently while handling high-throughput data. In this guide, I’ll walk through implementing pub/sub in Spring Boot, using a user management service as an example, drawing on my experience delivering robust backend solutions.

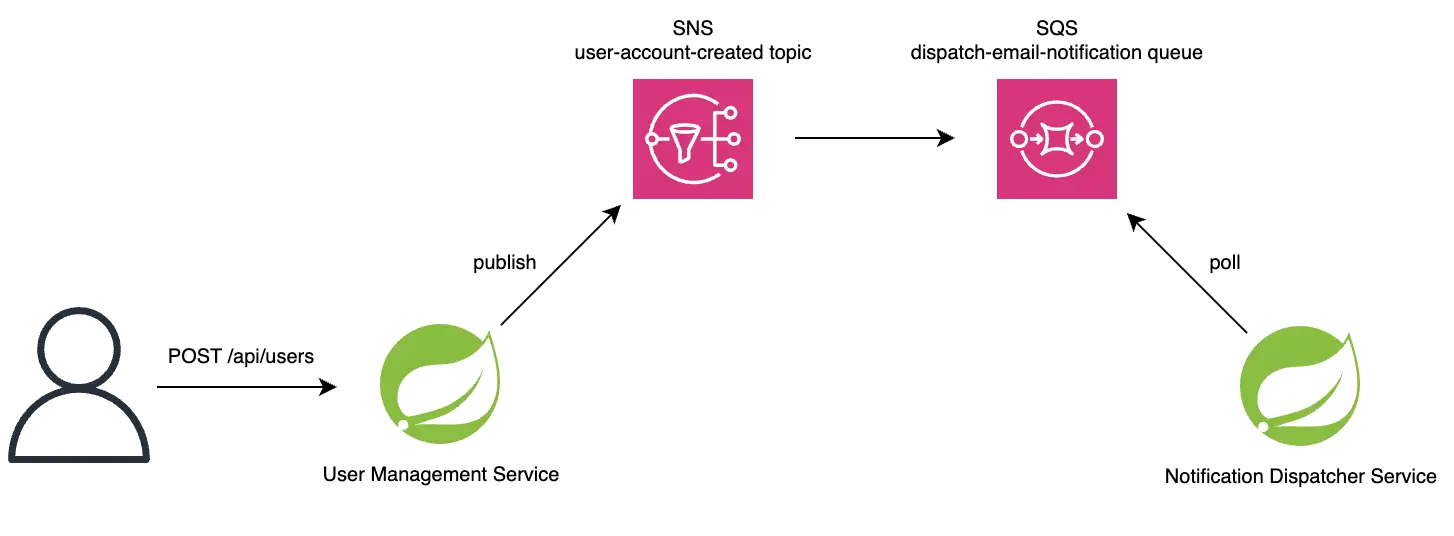

Why SNS and SQS for Pub/Sub?
Unlike direct SQS or Kafka queues, which tie publishers to specific subscribers, SNS acts as a middleware, broadcasting messages to multiple SQS queues without the publisher knowing who’s listening. This decoupling was critical in my Mosaic Smart Data pipeline, where market data fed multiple analytics services. SNS simplifies scaling—add a new subscriber queue, and the publisher remains unchanged. Below, I’ll show how to set up a publisher microservice sending user creation events to an SNS topic and a subscriber consuming them from an SQS queue.
Publisher Microservice Setup
The publisher simulates a user management service, exposing a REST API to create users and publishing events to an SNS
topic (user-account-created
). I use Spring Cloud AWS to streamline AWS interactions, avoiding the complexity of raw
SDKs.
Dependencies
Add Spring Cloud AWS SNS starter and BOM to your pom.xml
for version compatibility:
<properties>
<spring.cloud.version>3.1.1</spring.cloud.version>
</properties>
<dependencies>
<dependency>
<groupId>io.awspring.cloud</groupId>
<artifactId>spring-cloud-aws-starter-sns</artifactId>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>io.awspring.cloud</groupId>
<artifactId>spring-cloud-aws</artifactId>
<version>${spring.cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
Configuration
Define AWS credentials and SNS region in application.yaml
:
spring:
cloud:
aws:
credentials:
access-key: ${AWS_ACCESS_KEY}
secret-key: ${AWS_SECRET_KEY}
sns:
region: ${AWS_SNS_REGION}
co:
uk:
trinitylogic:
aws:
sns:
topic-arn: ${AWS_SNS_TOPIC_ARN}
Map the SNS topic ARN to a POJO using @ConfigurationProperties
for clean access:
import lombok.Getter;
import lombok.Setter;
import javax.validation.constraints.NotBlank;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.validation.annotation.Validated;
@Getter
@Setter
@Validated
@ConfigurationProperties(prefix = "uk.co.trinitylogic.aws.sns")
public class AwsSnsTopicProperties {
@NotBlank(message = "SNS topic ARN must be configured")
private String topicArn;
}
IAM Permissions
The publisher’s IAM user needs sns:Publish
permission:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"sns:Publish"
],
"Resource": "sns-topic-arn"
}
]
}
Publishing Messages
The service publishes a trimmed user creation event to SNS:
import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;
import io.awspring.cloud.sns.core.SnsTemplate;
@Slf4j
@Service
@RequiredArgsConstructor
public class UserService {
private final SnsTemplate snsTemplate;
private final AwsSnsTopicProperties awsSnsTopicProperties;
public void create(UserCreationRequestDto userCreationRequest) {
// Save user to database
var payload = removePassword(userCreationRequest);
snsTemplate.convertAndSend(awsSnsTopicProperties.getTopicArn(), payload);
log.info("Published message to topic ARN: {}", awsSnsTopicProperties.getTopicArn());
}
}
Expose the API via a controller:
import lombok.RequiredArgsConstructor;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.validation.Valid;
@RestController
@RequiredArgsConstructor
@RequestMapping("/api/v1/users")
public class UserController {
private final UserService userService;
@PostMapping(consumes = MediaType.APPLICATION_JSON_VALUE)
public ResponseEntity<HttpStatus> createUser(@Valid @RequestBody UserCreationRequestDto userCreationRequest) {
userService.create(userCreationRequest);
return ResponseEntity.status(HttpStatus.CREATED).build();
}
}
Test with a cURL request:
curl -X POST http://localhost:8080/api/v1/users \
-H "Content-Type: application/json" \
-d '{"name": "John Doe", "emailId": "john@trinitylogic.co.uk", "password": "secure123"}'
This logs a successful publish to the SNS topic, confirming the user creation event was sent.
Successfully published message to topic ARN: <ARN-value-here>
Subscriber Microservice Setup
The subscriber simulates a notification service, consuming user creation events from an SQS queue (
dispatch-email-notification
) to log email dispatch actions. It uses Spring Cloud AWS to simplify SQS
interactions, similar to the publisher.
Dependencies
Add the SQS starter to pom.xml
:
<dependency>
<groupId>io.awspring.cloud</groupId>
<artifactId>spring-cloud-aws-starter-sqs</artifactId>
</dependency>
Configuration
Define SQS properties in application.yaml
:
spring:
cloud:
aws:
credentials:
access-key: ${AWS_ACCESS_KEY}
secret-key: ${AWS_SECRET_KEY}
sqs:
region: ${AWS_SQS_REGION}
co:
uk:
trinitylogic:
aws:
sqs:
queue-url: ${AWS_SQS_QUEUE_URL}
Consuming Messages
Use @SqsListener
to process messages:
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Component;
import io.awspring.cloud.sqs.annotation.SqsListener;
@Slf4j
@Component
public class EmailNotificationListener {
@SqsListener("${co.uk.trinitylogic.aws.sqs.queue-url}")
public void listen(UserCreatedEventDto userCreatedEvent) {
log.info("Dispatching email to {} on {}", userCreatedEvent.getName(), userCreatedEvent.getEmailId());
// Email dispatch logic
}
}
To handle SNS metadata, enable raw message delivery or use @SnsNotificationMessage
:
@SqsListener("${co.uk.trinitylogic.aws.sqs.queue-url}")
public void listen(@SnsNotificationMessage UserCreatedEventDto userCreatedEvent) {
log.info("Dispatching email to {} on {}", userCreatedEvent.getName(), userCreatedEvent.getEmailId());
}
IAM Permissions
The subscriber’s IAM user needs sqs:ReceiveMessage
and sqs:DeleteMessage
:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"sqs:ReceiveMessage",
"sqs:DeleteMessage"
],
"Resource": "sqs-queue-arn"
}
]
}
SQS-SNS Subscription
Subscribe the SQS queue to the SNS topic via AWS Console or CLI. Add an SQS resource policy to allow SNS to send messages:
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "sns.amazonaws.com"
},
"Action": "sqs:SendMessage",
"Resource": "sqs-queue-arn",
"Condition": {
"ArnEquals": {
"aws:SourceArn": "sns-topic-arn"
}
}
}
]
}
Encryption at Rest with AWS KMS
For sensitive data, like user details in my projects, encryption at rest is crucial for compliance (e.g., GDPR, PCI-DSS). Create a KMS key and enable encryption on SNS and SQS. Update the KMS key policy:
[
{
"Effect": "Allow",
"Principal": {
"Service": "sqs.amazonaws.com"
},
"Action": [
"kms:GenerateDataKey",
"kms:Decrypt"
],
"Resource": "kms-key-arn",
"Condition": {
"ArnEquals": {
"aws:SourceArn": "sqs-queue-arn"
}
}
},
{
"Effect": "Allow",
"Principal": {
"Service": "sns.amazonaws.com"
},
"Action": [
"kms:GenerateDataKey",
"kms:Decrypt"
],
"Resource": "kms-key-arn",
"Condition": {
"ArnEquals": {
"aws:SourceArn": "sns-topic-arn"
}
}
}
]
Add KMS permissions to the publisher’s IAM user:
{
"Effect": "Allow",
"Action": [
"kms:GenerateDataKey",
"kms:Decrypt"
],
"Resource": "kms-key-arn"
}
This ensures data security in transit and at rest, meeting compliance standards.
Testing with LocalStack and Testcontainers
To validate the pub/sub flow, I use LocalStack and Testcontainers for integration testing. This setup mimics AWS services locally, allowing for end-to-end testing without incurring costs or needing AWS credentials.
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.testcontainers</groupId>
<artifactId>localstack</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.awaitility</groupId>
<artifactId>awaitility</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
Create a provision-resources.sh
script in src/test/resources
:
#!/bin/bash
topic_name="user-account-created"
queue_name="dispatch-email-notification"
sns_arn_prefix="arn:aws:sns:us-east-1:000000000000"
sqs_arn_prefix="arn:aws:sqs:us-east-1:000000000000"
awslocal sns create-topic --name $topic_name
awslocal sqs create-queue --queue-name $queue_name
awslocal sns subscribe --topic-arn "$sns_arn_prefix:$topic_name" --protocol sqs --notification-endpoint "$sqs_arn_prefix:$queue_name"
echo "Successfully provisioned resources"
Set up the integration test:
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.test.web.servlet.MockMvc;
import org.testcontainers.containers.localstack.LocalStackContainer;
import org.testcontainers.utility.DockerImageName;
import org.testcontainers.utility.MountableFile;
import org.springframework.test.context.DynamicPropertyRegistry;
import org.springframework.test.context.DynamicPropertySource;
import org.junit.jupiter.api.extension.ExtendWith;
import org.springframework.boot.test.system.OutputCaptureExtension;
import org.springframework.boot.test.system.CapturedOutput;
import org.testcontainers.containers.wait.strategy.Wait;
import org.awaitility.Awaitility;
import java.util.concurrent.TimeUnit;
@SpringBootTest
class PubSubIT {
@Autowired
private MockMvc mockMvc;
private static final LocalStackContainer localStackContainer;
private static final String TOPIC_ARN = "arn:aws:sns:us-east-1:000000000000:user-account-created";
private static final String QUEUE_URL = "http://sqs.us-east-1.localhost.localstack.cloud:4566/000000000000/dispatch-email-notification";
static {
localStackContainer = new LocalStackContainer(DockerImageName.parse("localstack/localstack:3.3"))
.withCopyFileToContainer(MountableFile.forClasspathResource("provision-resources.sh", 0744), "/etc/localstack/init/ready.d/provision-resources.sh")
.withServices(LocalStackContainer.Service.SNS, LocalStackContainer.Service.SQS)
.waitingFor(Wait.forLogMessage(".*Successfully provisioned resources.*", 1));
localStackContainer.start();
}
@DynamicPropertySource
static void properties(DynamicPropertyRegistry registry) {
registry.add("spring.cloud.aws.credentials.access-key", localStackContainer::getAccessKey);
registry.add("spring.cloud.aws.credentials.secret-key", localStackContainer::getSecretKey);
registry.add("spring.cloud.aws.sns.region", localStackContainer::getRegion);
registry.add("spring.cloud.aws.sns.endpoint", localStackContainer::getEndpoint);
registry.add("co.uk.trinitylogic.aws.sns.topic-arn", () -> TOPIC_ARN);
registry.add("spring.cloud.aws.sqs.region", localStackContainer::getRegion);
registry.add("spring.cloud.aws.sqs.endpoint", localStackContainer::getEndpoint);
registry.add("co.uk.trinitylogic.aws.sqs.queue-url", () -> QUEUE_URL);
}
@Test
void test(CapturedOutput output) throws Exception {
var name = "Jane Doe";
var emailId = "jane@trinitylogic.co.uk";
var userCreationRequestBody = String.format("""
{
"name": "%s",
"emailId": "%s",
"password": "secure456"
}
""", name, emailId);
mockMvc.perform(post("/api/v1/users")
.contentType(MediaType.APPLICATION_JSON)
.content(userCreationRequestBody))
.andExpect(status().isCreated());
var expectedPublisherLog = String.format("Published message to topic ARN: %s", TOPIC_ARN);
Awaitility.await().atMost(1, TimeUnit.SECONDS).until(() -> output.getAll().contains(expectedPublisherLog));
var expectedSubscriberLog = String.format("Dispatching email to %s on %s", name, emailId);
Awaitility.await().atMost(1, TimeUnit.SECONDS).until(() -> output.getAll().contains(expectedSubscriberLog));
}
}
This test, validates the entire pub/sub flow using MockMVC and Awaitility, ensuring messages flow from SNS to SQS.
Conclusion
Implementing pub/sub with AWS SNS and SQS in Spring Boot creates a loosely coupled, scalable architecture, as I’ve done for real-time systems like Mosaic Smart Data’s market data pipeline. Spring Cloud AWS simplifies integration, while KMS encryption ensures security. LocalStack and Testcontainers make testing robust, mirroring my approach to reliable deployments.
Try this setup in your next project and Share your wins or tips with me here, I’d love to hear your story!
